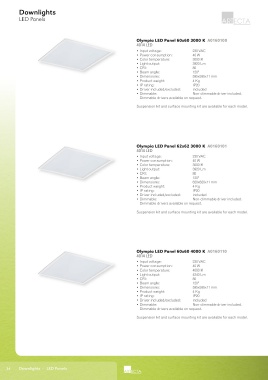

Page 36 - Artecta Product Catalogue

Downlights Downlights
LED Panels LED Panels

Olympia LED Panel 60x60 3000 K A0160100 Olympia LED Panel 62x62 4000 K A0160111
4014 LED 4014 LED
• Input voltage: 230 VAC • Input voltage: 230 VAC
• Power consumption: 40 W • Power consumption: 40 W
• Color temperature: 3000 K • Color temperature: 4000 K
• Light output: 3920 Lm • Light output: 4240 Lm
• CRI: 80 • CRI: 80
• Beam angle: 120° • Beam angle: 120°
• Dimensions: 595x595x11 mm • Dimensions: 620x620x11 mm
• Product weight: 4 Kg • Product weight: 4 Kg
• IP rating: IP20 • IP rating: IP20
• Driver included/excluded: included • Driver included/excluded: included
• Dimmable: Non-dimmable driver included. • Dimmable: Non-dimmable driver included.
Dimmable drivers available on request. Dimmable drivers available on request.

Suspension kit and surface mounting kit are available for each model. Suspension kit and surface mounting kit are available for each model.

Olympia LED Panel 62x62 3000 K A0160101 Olympia LED Panel 30x120 3000 K A0160120
4014 LED 4014 LED
• Input voltage: 230 VAC • Input voltage: 230 VAC
• Power consumption: 40 W • Power consumption: 40 W
• Color temperature: 3000 K • Color temperature: 3000 K
• Light output: 3920 Lm • Light output: 4100 Lm
• CRI: 80 • CRI: 80
• Beam angle: 120° • Beam angle: 120°
• Dimensions: 620x620x11 mm • Dimensions: 295x1195x11 mm
• Product weight: 4 Kg • Product weight: 4 Kg
• IP rating: IP20 • IP rating: IP20
• Driver included/excluded: included • Driver included/excluded: included
• Dimmable: Non-dimmable driver included. • Dimmable: Non-dimmable driver included.
Dimmable drivers available on request. Dimmable drivers available on request.
Suspension kit and surface mounting kit are available for each model. Suspension kit and surface mounting kit are available for each model.

Olympia LED Panel 60x60 4000 K A0160110 Olympia LED Panel 30x120 4000 K A0160130
4014 LED 4014 LED
• Input voltage: 230 VAC • Input voltage: 230 VAC
• Power consumption: 40 W • Power consumption: 40 W
• Color temperature: 4000 K • Color temperature: 4000 K
• Light output: 4240 Lm • Light output: 3880 Lm
• CRI: 80 • CRI: 80
• Beam angle: 120° • Beam angle: 120°
• Dimensions: 595x595x11 mm • Dimensions: 295x1195x11 mm
• Product weight: 4 Kg • Product weight: 4 Kg
• IP rating: IP20 • IP rating: IP20
• Driver included/excluded: included • Driver included/excluded: included
• Dimmable: Non-dimmable driver included. • Dimmable: Non-dimmable driver included.
Dimmable drivers available on request. Dimmable drivers available on request.
Suspension kit and surface mounting kit are available for each model. Suspension kit and surface mounting kit are available for each model.

34 Downlights - LED Panels Downlights - LED Panels 35
