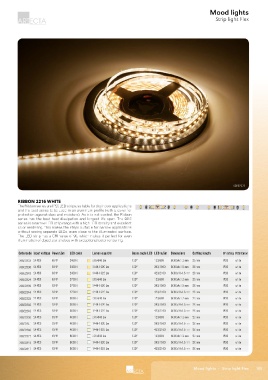

Page 111 - Artecta Product Catalogue

Mood lights Mood lights
Strip light Flex Strip light Flex

A0852325

RIBBON 2216 WHITE
The Ribbon series are IP20 LED strips, suitable for dry indoor applications
and the best series to be used in an aluminum profile (with a cover for
protection against dust and moisture). As it is not coated, the Ribbon
series has the best heat dissipation and longest life span. The 2216
series is a narrow LED strip range with a high LED density and excellent
color rendering. This makes the strips suitable for narrow applications
without seeing separate LEDs, even close to the illuminated surface.
The LED strip has a CRI value of 90, which makes it perfect for even
illumination of objects or shelves with exceptional color rendering.

Ordercode Input voltage Power/5m LED color Lumen ouput/m Beam angle LED LED m/5m Dimensions Cutting length IP rating PCB Color
A0852323 24 VDC 60 W 2400 K 575-640 Lm 120° 120/600 5000x4x1.2 mm 25 mm IP20 white
A0852338 24 VDC 90 W 2400 K 1440-1620 Lm 120° 300/1500 5000x4x1.5 mm 20 mm IP20 white
A0852343 24 VDC 90 W 2400 K 1440-1625 Lm 120° 420/2100 5000x10x1.5 mm 20 mm IP20 white
A0852324 24 VDC 60 W 2700 K 575-640 Lm 120° 120/600 5000x4x1.2 mm 25 mm IP20 white
A0852339 24 VDC 90 W 2700 K 1440-1620 Lm 120° 300/1500 5000x4x1.5 mm 20 mm IP20 white
A0852344 24 VDC 90 W 2700 K 1440-1625 Lm 120° 420/2100 5000x10x1.5 mm 20 mm IP20 white
A0852325 24 VDC 60 W 3000 K 575-640 Lm 120° 120/600 5000x4x1.2 mm 25 mm IP20 white
A0852340 24 VDC 90 W 3000 K 1440-1620 Lm 120° 300/1500 5000x10x1.5 mm 20 mm IP20 white
A0852345 24 VDC 90 W 3000 K 1440-1625 Lm 120° 420/2100 5000x10x1.5 mm 20 mm IP20 white
A0852326 24 VDC 60 W 4000 K 575-640 Lm 120° 120/600 5000x4x1.2 mm 25 mm IP20 white
A0852341 24 VDC 90 W 4000 K 1440-1620 Lm 120° 300/1500 5000x10x1.5 mm 20 mm IP20 white
A0852346 24 VDC 90 W 4000 K 1440-1625 Lm 120° 420/2100 5000x10x1.5 mm 20 mm IP20 white
A0852327 24 VDC 60 W 6000 K 575-640 Lm 120° 120/600 5000x4x1.2 mm 25 mm IP20 white
A0852342 24 VDC 90 W 6000 K 1440-1620 Lm 120° 300/1500 5000x10x1.5 mm 20 mm IP20 white
A0852347 24 VDC 90 W 6000 K 1440-1625 Lm 120° 420/2100 5000x10x1.5 mm 20 mm IP20 white

108 Mood lights - Strip light Flex Mood lights - Strip light Flex 109
