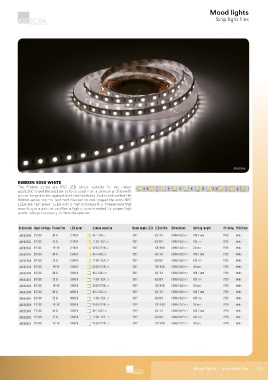

Page 113 - Artecta Product Catalogue

Mood lights Mood lights
Strip light Flex Strip light Flex

A0852041 A0852050

RIBBON 3528 WHITE RIBBON 5050 WHITE
The Ribbon series are IP20 LED strips, suitable for dry indoor The Ribbon series are IP20 LED strips, suitable for dry indoor
applications and the best series to be used in an aluminum profile (with applications and the best series to be used in an aluminum profile (with
a cover for protection against dust and moisture). As it is not coated, a cover for protection against dust and moisture). As it is not coated, the
the Ribbon series has the best heat dissipation and longest life span. Ribbon series has the best heat dissipation and longest life span. 5050
The 3528 LED is an efficient mid power LED, for versatile applications. LEDs are high power LEDs with a high luminous flux. Please note that
Due to its compact size, a high LED/meter rating is possible to create mounting in aluminum profiles is highly recommended for proper high
an even light spread. This range is also available in a 20 meter version in power ratings necessary for heat dissipation.
the Santiago series.

Ordercode Input voltage Power/5m LED color Lumen ouput/m Beam angle LED LED m/5m Dimensions Cutting length IP rating PCB Color Ordercode Input voltage Power/5m LED color Lumen ouput/m Beam angle LED LED m/5m Dimensions Cutting length IP rating PCB Color
A0852033 24 VDC 24 W 2400 K 400-460 Lm 120° 60/300 5000x8x2 mm 100 mm IP20 white A0852048 24 VDC 36 W 2400 K 504-560 Lm 120° 30/150 5000x10x2 mm 166.7 mm IP20 white
A0852043 24 VDC 48 W 2400 K 760-870 Lm 120° 120/600 5000x8x2 mm 50 mm IP20 white A0852053 24 VDC 72 W 2400 K 1180-1324 Lm 120° 60/300 5000x10x2 mm 100 mm IP20 white
A0852065 24 VDC 96 W 2400 K 1536-1750 Lm 120° 240/1200 5000x10x2.2 mm 25 mm IP20 white A0856547 24 VDC 144 W 2400 K 2560-2798 Lm 120° 120/600 5000x12x2 mm 50 mm IP20 white
A0852064 24 VDC 96 W 2400 K 1536-1750 Lm 120° 240/1200 5000x15x2.5 mm 50 mm IP20 white A0852045 24 VDC 36 W 2700 K 504-560 Lm 120° 30/150 5000x10x2 mm 166.7 mm IP20 white
A0852030 24 VDC 24 W 2700 K 400-460 Lm 120° 60/300 5000x8x2 mm 100 mm IP20 white A0852050 24 VDC 72 W 2700 K 1180-1324 Lm 120° 60/300 5000x10x2 mm 100 mm IP20 white
A0852040 24 VDC 48 W 2700 K 760-870 Lm 120° 120/600 5000x8x2 mm 50 mm IP20 white A0856548 24 VDC 144 W 2700 K 2560-2798 Lm 120° 120/600 5000x12x2 mm 50 mm IP20 white
A0852066 24 VDC 96 W 2700 K 1536-1750 Lm 120° 240/1200 5000x10x2.2 mm 25 mm IP20 white A0852046 24 VDC 36 W 3000 K 504-560 Lm 120° 30/150 5000x10x2 mm 166.7 mm IP20 white
A0852060 24 VDC 96 W 2700 K 1536-1750 Lm 120° 240/1200 5000x15x2 mm 50 mm IP20 white A0852051 24 VDC 72 W 3000 K 1180-1324 Lm 120° 60/300 5000x10x2 mm 100 mm IP20 white
A0852031 24 VDC 24 W 3000 K 400-460 Lm 120° 60/300 5000x8x2 mm 100 mm IP20 white A0856549 24 VDC 144 W 3000 K 2560-2798 Lm 120° 120/600 5000x12x2 mm 50 mm IP20 white
A0852041 24 VDC 48 W 3000 K 760-870 Lm 120° 120/600 5000x8x2 mm 50 mm IP20 white A0852049 24 VDC 36 W 4000 K 504-560 Lm 120° 30/150 5000x10x2 mm 166.7 mm IP20 white
A0852063 24VDC 96W 3000 K 1536-1750 Lm 120° 240/1200 5000x10x2.2 mm 25 mm IP20 white A0852054 24 VDC 72 W 4000 K 1180-1324 Lm 120° 60/300 5000x10x2 mm 100 mm IP20 white
A0852061 24 VDC 96 W 3000 K 1536-1750 Lm 120° 240/1200 5000x15x2 mm 50 mm IP20 white A0856550 24 VDC 144 W 4000 K 2560-2798 Lm 120° 120/600 5000x12x2 mm 50 mm IP20 white
A0852034 24 VDC 24 W 4000 K 400-460 Lm 120° 60/300 5000x8x2 mm 100 mm IP20 white A0852047 24 VDC 36 W 6000 K 504-560 Lm 120° 30/150 5000x10x2 mm 166.7 mm IP20 white
A0852044 24 VDC 48 W 4000 K 760-870 Lm 120° 120/600 5000x8x2 mm 50 mm IP20 white A0852052 24 VDC 72 W 6000 K 1180-1324 Lm 120° 60/300 5000x10x2 mm 100 mm IP20 white
A0852067 24 VDC 96 W 4000 K 1536-1750 Lm 120° 240/1200 5000x10x2.2 mm 25 mm IP20 white A0856551 24 VDC 144 W 6000 K 2560-2798 Lm 120° 120/600 5000x12x2 mm 50 mm IP20 white
A0852032 24 VDC 24 W 6000 K 400-460 Lm 120° 60/300 5000x8x2 mm 100 mm IP20 white
A0852042 24 VDC 48 W 6000 K 760-780 Lm 120° 120/600 5000x8x2 mm 50 mm IP20 white
A0852068 24 VDC 96 W 6000 K 1536-1750 Lm 120° 240/1200 5000x10x2.2 mm 25 mm IP20 white
A0852062 24 VDC 96 W 6000 K 1536-1750 Lm 120° 240/1200 5000x15x2 mm 50 mm IP20 white

110 Mood lights - Strip light Flex Mood lights - Strip light Flex 111
